[Nanografi] CR2032 Coin Cell Case (Negative Case, Cone Spring, Spacer, Positive Case), Materials: 304SS

[Nanografi] CR2032 Coin Cell Case (Negative Case, Cone Spring, Spacer, Positive Case), Materials: 304SS



SKU:NG08BE0101

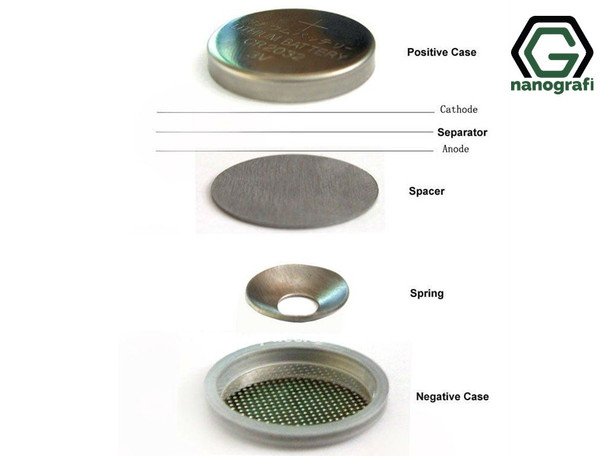

CR2032 Coin Cell Case (include Negative Case, Cone Spring, Spacer, Positive Case), Materials: 304SS

Cr2032 Coin Cell Cases are made from stainless steel and includes a top cover, bottom container, a steel spacer and a steel spring. Cr2032 Coin Cell Cases are excellent for developing new rechargeable battery and battery electrodes. We supply  Cr2032 Coin Cell Cases with low prices and high quality to fulfill our customers' needs.

Technical Properties:

Dimensions (Dia x Height)	20 mm x 3.2 mm
Weight	3.40 grams
304SS Spacer	15.8*0.5 mm
Cone Spring	15.4*1.1 mm
Sealing Gasket	Polypropylene (PP)
Thickness of Negative Case and Positive Case	0.25 mm +/- 0.02 mm
Material	304SS

Applications:

CR2032 Coin Cell Case (Negative Case, Cone Spring, Spacer, Positive Case) for Battery Research

CR2032 Coin Cell Cases (20d x 3.2t mm) with O-rings for Battery Research
