[Nanografi] Graphene Sheet, Size: 10 cm x 10 cm, Thickness: 35 µm, Highly Conductive

by 래빗랩스(RabbitLabs) 2023. 11. 3.

[Nanografi] Graphene Sheet, Size: 10 cm x 10 cm, Thickness: 35 µm, Highly Conductive

SKU:NG01GS0104

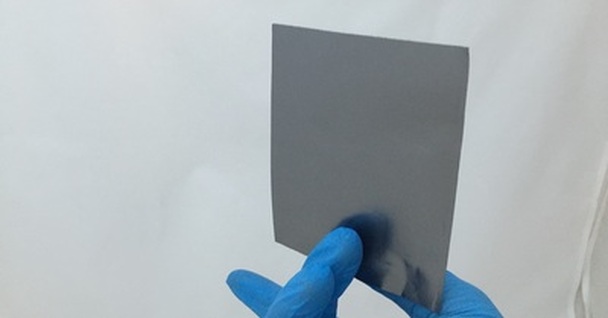

Graphene Sheet

Size: 10 cm x 10 cm, Highly Conductive, Thickness: 35 µm

Graphene sheets are essentially the finest materials in the world. Graphene sheet is a one-atom-thick planar sheet of
carbon iotas which are intensively packed in a hexagonal lattice structure. Graphene sheets show high electrical conductance
at room temperatures. They are used as fillers for the improvement of electrical and mechanical properties in composite materials.
Graphene sheets have a vital importance for applications in biomaterials, biosensors, biomedical devices and drug delivery.
Our company sells Graphene Sheet with low prices and high quality.

Technical Properties:

Size (cm) 10 x 10
Thickness (µm) 35
Thermal Conductivity In Plane (W/mK) 550
Density (gr/cm3) 1,8
Tensile Strength (MPa) 10
Electrical Conductivity In Plane (S/cm) 3700
EMI Shielding dB @30 MHz - dB @1.5 GHz 53 -58
Electrical Resistivity (Surface (Ω/sq) ) 0.06
Max Operating Temperature (°C) 450
RoHS Compliant Yes



Thermal Conductivity and Spreading -In-plane conductivity above 550 W/mK

Electrical Properties - Formulations are available with surface resistivity ranging as low as 0.04 Ω/sq

Potential applications include:

• Thermal management and heat spreading

• EMI Shielding

• Electrodes for batteries and Supercapacitors

Applications:

  • Consumer electronics: smartphones, tablets, PCs, TVs
  • LED lighting
  • Energy storage
  • Automotive
  • Industrial
  • Medical
  • Military and aerospace

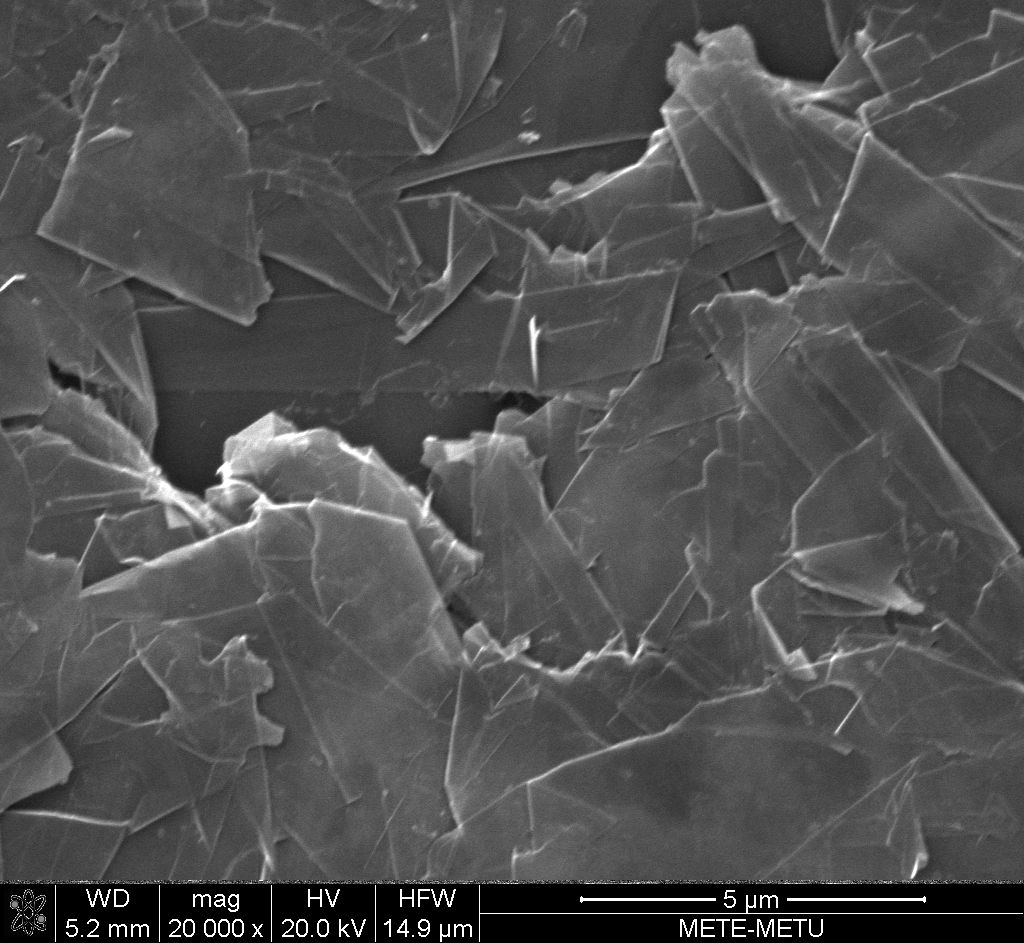

Graphene Sheet -SEM Image

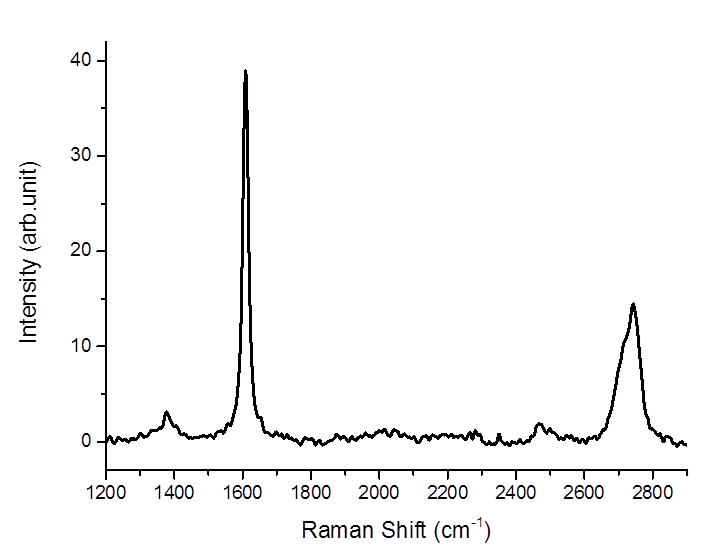

 Graphene Sheet- Raman
