[InRedox] ATO Films on Ti Foil

[InRedox] ATO Films on Ti Foil

SKU: AAO

The general range of AAO geometries and specifications for our standard stock products.

ParameterAvailable Range *Standard Specifications (stock products)

Nanotube Diameter, nm	15 – 750	50, 100, 150, 300, 500 (±10% + 2)
Size, mm (in)	5 – 200 (1/8″ – 8″)	10 mm and 25 mm OD round;  10 mm x 10 mm and 25 mm x 25 mm square
Shape	any	round or square
ATO Thickness (Nanotube Length), µm	0.05 – 100	0.5, 1, 2, 5, 10, 20 (±10% + 1 µm)
Nanotube Density, cm-2	1010 – 108	depends on nanotube diameter
Porosity, %	5 – 80	15 – 80

Product Features

• – ATO is grown on and inherently adheres to the surface of Ti foil
• – Starting Ti foil thickness 0.03 mm
• – ATO is typically grown one side of Ti foil
• – Nanotubes have an open channel or pore along the center axis
• – The bottom of the nanopore is separated from Ti by a thin  (10’s to 100’s nm) layer of dense titania (“barrier layer”).
• – Available in different shapes and sizes

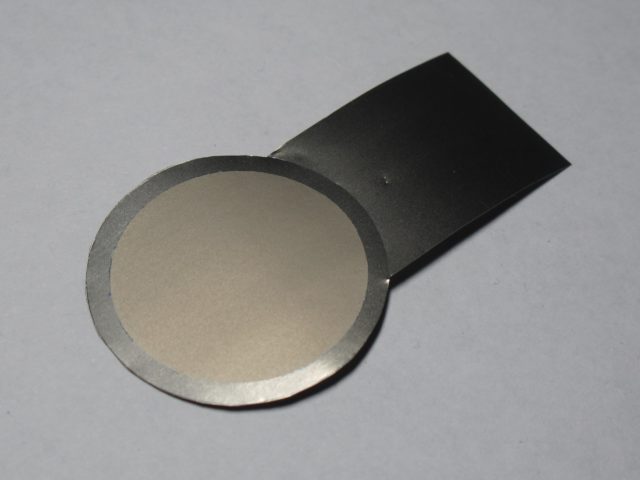

Films of nanotubular Anodic Titanium Oxide (NTO or ATO) on Ti foil are a convenient low-cost alternative to synthesizing ATO in-house. These products are offered with ATO thickness (or nanotube length) from 0.5 to 20 micrometers and nanotube diameters from 50 nm to 500 nm.  Not every combination of nanotubes diameter and lengths is available – use the pull-down menus below to check the price and availability.
