[InRedox] Anisotropic AAO Membranes

[InRedox]  Anisotropic AAO Membranes

SKU: AAO|AM-013-DP-060



The general range of pore geometries available for anisotropic anodic alumina membranes.

 PARAMETERAVAILABLE RANGE*SUPPORT LAYERACTIVE LAYER

Pore Diameter, nm	2 – 300	150±25	2, 5, 10, 20, 50, 100, 200 (±10% + 2)
Thickness, µm	20 – 200	60±2 (OD 10 to 25 mm) 100±4 (OD 47 mm) 150±10 (OD 90 mm)	1.5-2.5 µm (standard) 1-10 µm (custom)
Pore Density, cm-2	1012 – 108	2·109	depends on the pore diameter
Porosity, %	1 – 60	20 – 30 (typically 25)	10 – 15

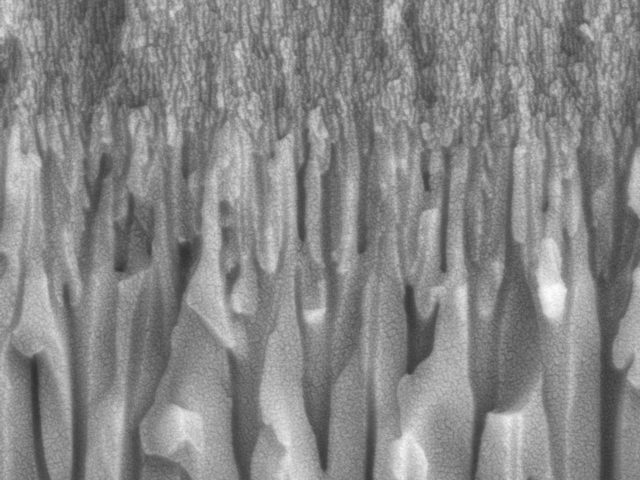

Anisotropic Ceramic Membranes from self-organized nanoporous alumina (also known as Anodic Aluminum Oxide or AAO) contain two layers with different pore structure integrated into a monolithic membrane:

Support Layer –  spans most of the membrane thickness and contains large uniform pores with porosity of up to 50% to provide mechanical strength and high  permeance.

Active Layer – a thin layer of AAO with highly uniform monodisperse pores to enable highly selective size-based (2 to 100 nm) separation with very sharp molecular weight cutoff, suitable for nano- and ultrafiltration applications.
