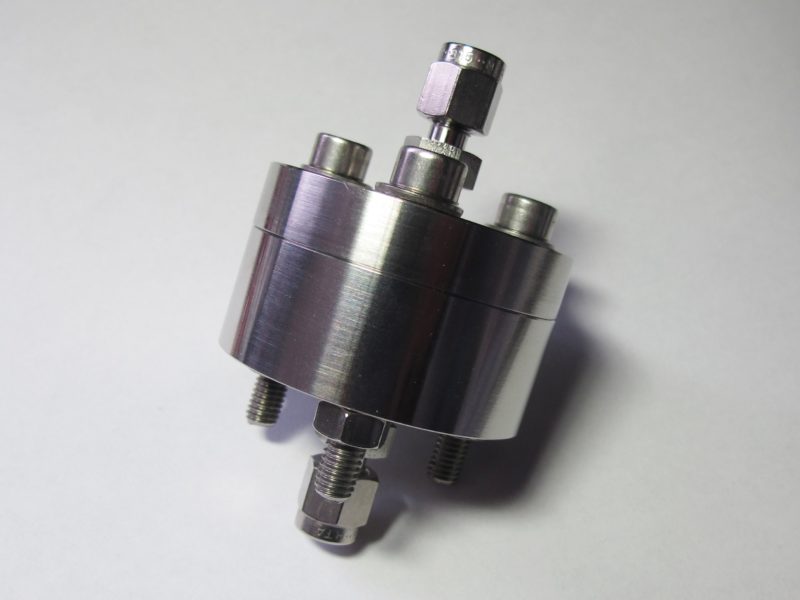

[InRedox] Membrane Holders for AAO Membranes

[InRedox] Membrane Holders for AAO Membranes

Description

APLLICATION CONDITIONSAQUEOUS SOLUTIONS WITH WIDE RANGE OF PH, INERT GASESSOME AQUEOUS SOLUTIONS, ORGANIC SOLUTIONS AND VAPORS, GASESHOLDER MATERIALSO-RING MATERIALSTEMPERATURE RANGEPRESSURE RANGEFITTINGS MATERIALS



PEEK, CPVC (discontinued)	Stainless Steel (304)
Viton®	Kalrez® or Graphite
0 to 85 °C	-20 to 300 °C (with Kalrez® O-rings) up to 700°C (with Graphite seals)
up to 150 psi / 1000 kPa	up to 450 psi / 3000 kPa
Acetal or Delrin	Stainless Steel

Common Specifications:

• Filtration modes
  • dead-end (DE) filtration
  • tangential flow (TF) filtration – requires special fittings
• Membrane Diameter:
  • 25 mm (with optional inserts for 13 mm membranes)
  • 33 mm
  • 47 (50) mm
  • 90 mm
• Membrane thickness:  20 to 200 μm
• Holder accommodates other types of membranes
• Input / Output ports:
  • 1/8″ NPTF thread (standard)
  • could be modified by request (custom)

Standard holder kit for 25 mm AAO Membranes includes:

• Top (upstream) and bottom (downstream) flanges
• Stainless steel support frit
• Stainless steel hardware (3 screws, 3 nuts)
• Set of 10 Viton® O-rings for selected membrane size
• Inserts for smaller membranes (optional, purchased separately)
• Fittings (purchased separately)
• Instruction manual

Replacement parts available:

• O-rings (Viton®, Kalrez®, Graphite)
• Mounting hardware
• Inserts for smaller membranes sizes (i.e, 13 mm in 25 mm holder)
• Fittings for dead end filtration (1/8″ or 1/4″ OD tubing to 1/8″ NPT ports)
• Fittings for tangential flow filtration (2 x 1/8″ or 2 x 1/4″ OD tubing to 1/8″ NPT ports)
