[Definigen] A1ATD disease modelled hepatocytes

[Definigen] A1ATD disease modelled hepatocytes



Product ID	Def-HEP A1ATD
Format	Cryopreserved
Cell number	4-6 million cells
Genetic background	Alpha-one antitrypsin deficiency
Viability	>70%

Def-HEP A1ATD cell morphology

The Def-HEP A1ATD cells are patient representative human hepatocytes. When thawed and plated Def-HEP A1ATD cells form a monolayer with typical hepatocyte cobblestone morphology.

Figure 1. Clear cobblestone morphology of Def-HEP A1ATD cells post-thaw.

Hepatocyte maturation markers

Def-HEP A1ATD cells display the functional characteristics of primary human hepatocytes (PHH) including albumin and A1ATD production (Figure 2). Accordingly, they should be handled in a similar fashion to primary human hepatocytes.

Figure 2. Functional analysis of hepatocyte-specific markers in Def-HEP A1ATD cells. Immunostaining of Def-HEP A1ATD cells overviewing the expression of general hepatocyte maturation markers.

Detection of disease markers via ELISA

ELISA for polymer and secreted A1ATD using antibodies specific for A1ATD polymers (2C1mAb, top) or all conformers of A1ATD (bottom).

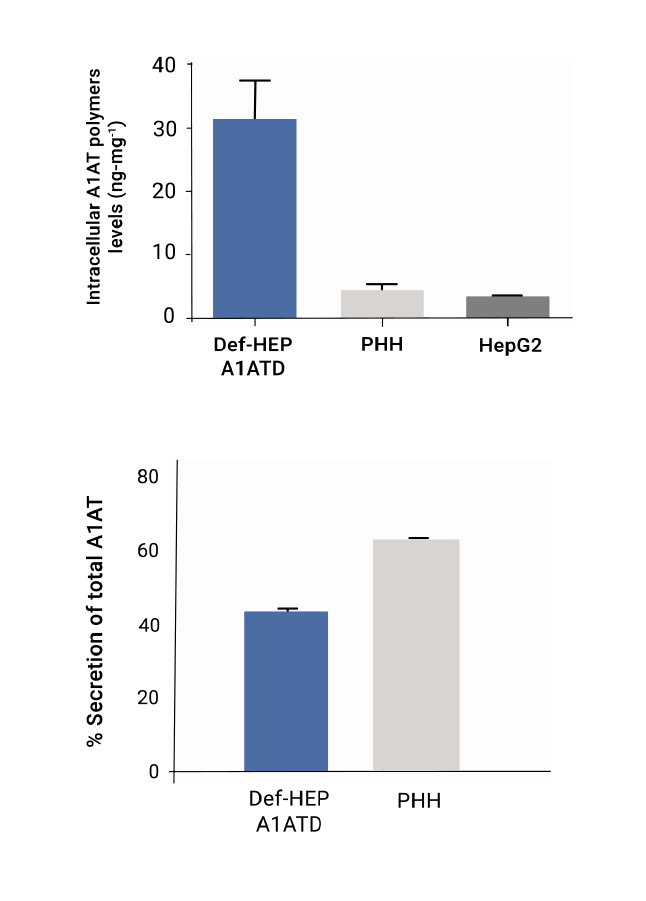

Figure 3. Detection of disease specific markers in Def-HEP A1ATD cells. Quantification of intracellular A1ATD polymers and intercellular total A1ATD secretion in Def-HEP A1ATD cells. Primary human hepatocytes (PHH) and hepatocellular liver carcinoma cells (Hep G2) are used as internal controls.

Immunocytochemistry analysis of A1ATD mutant polymer

Previous studies have shown that the Z allele (Glu342Lys) results in the formation of ordered polymers of a1-antitrypsin that are retained within the ER. This pathway of a1-antitrypsin polymerization is central to the clinical phenotype. We therefore used the 2C1 polymer specific monoclonal antibody to detect polymers within Def-HEP A1ATD hepatocytes. Polymers were detected by immunostaining (Figure 4).

Figure 4. Accumulation of a1-antitrypsin polymers in Def-HEP A1ATD cells. Immunostaining analyses for expression of misfolded polymeric a1-antitrypsin using the polymer-specific 2C1 antibody (green) or an antibody that detects all forms of a1-antitrpysin (red) in Def-HEP A1ATD disease modelled cells and control Def-HEP WT. Merged images are shown at right.
