[InRedox] ATO Films on Ti Foil

[InRedox] ATO Films on Ti Foil

Product Features

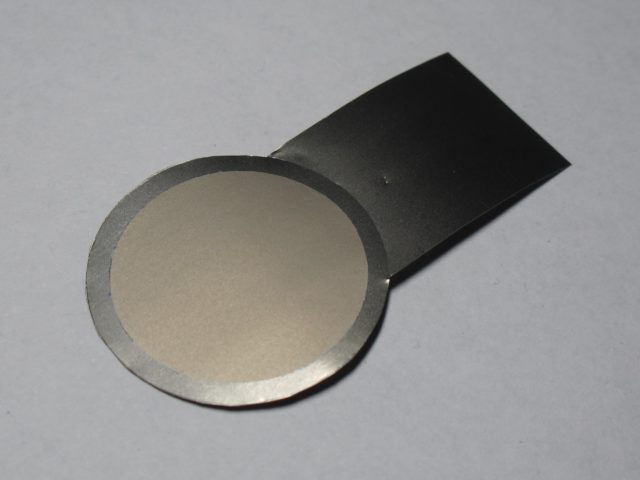

• – ATO is grown on and inherently adheres to the surface of Ti foil
• – Starting Ti foil thickness 0.03 mm
• – ATO is typically grown one side of Ti foil
• – Nanotubes have an open channel or pore along the center axis
• – The bottom of the nanopore is separated from Ti by a thin  (10’s to 100’s nm) layer of dense titania (“barrier layer”).
• – Available in different shapes and sizes



Description

The general range of AAO geometries and specifications for our standard stock products.

PARAMETERAVAILABLE RANGE *STANDARD SPECIFICATIONS (STOCK PRODUCTS)

Nanotube Diameter, nm	15 – 750	50, 100, 150, 300, 500 (±10% + 2)
Size, mm (in)	5 – 200 (1/8″ – 8″)	10 mm and 25 mm OD round;  10 mm x 10 mm and 25 mm x 25 mm square
Shape	any	round or square
ATO Thickness (Nanotube Length), µm	0.05 – 100	0.5, 1, 2, 5, 10, 20 (±10% + 1 µm)
Nanotube Density, cm-2	1010 – 108	depends on nanotube diameter
Porosity, %	5 – 80	15 – 80

* Custom specifications within these ranges are available upon request, email your requirements to info@inredox.com.

** Lead time for standard specifications is 2 to 10 days and 2-6 weeks for custom orders.





Additional information



10 mm OD, 10 mm x 10 mm, 25 mm OD, 25 mm x 25 mm

50 nm, 100 nm, 150 nm, 300 nm, 500 nm

0.5 µm, 1 µm, 2 µm, 5 µm, 10 µm, 20 µm
