Wide selection of wafer sizes, pore diameters and AAO thicknesses in stock for on-line ordering and quick delivery.

No minimal order – just select AAO parameters and in the pull-down menu below and add to cart.

Customization – if  you need different specifications, review the table below and contact us with your requirements.

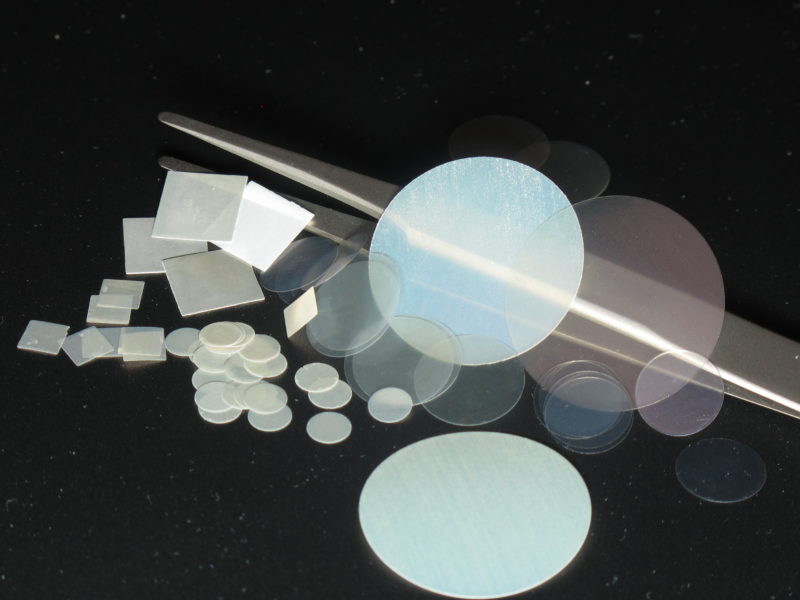

Free-standing nanoporous AAO wafers with pores open on both faces (also known as anodic alumina membranes or nanotemplates) are the most popular form factor for many applications.



The general range of AAO geometries and specifications for our standard stock products.

PARAMETERAVAILABLE RANGE*STANDARD SPECIFICATIONS(STOCK PRODUCTS)

Pore Diameter, nm	2 – 500	10, 20, 40, 60, 80, 120, 160, 200, 250 (±10% + 2)
Size of Free-Standing AAO, mm	1 – 200	5, 10, 13, 25 (±0.1); 50, 100 (±0.2)
Shape	any	round or square
AAO Thickness, µm	5 – 200	20±1 (size 5 to 13 mm only), 50±2, 100±4, 150±10
Pore Density, cm-2	1012 – 108	depending on the pore diameter
Porosity, %	1 – 60	10 – 50 (±3-5)

* Custom specifications within these ranges are available upon request, contact us with your requirements.

** Lead time for standard specifications is 2 to 5 days and 2-6 weeks for custom or out of stock products.

*** Volume discounts are available on orders over $750.  Contact us for to request a formal quotation.
