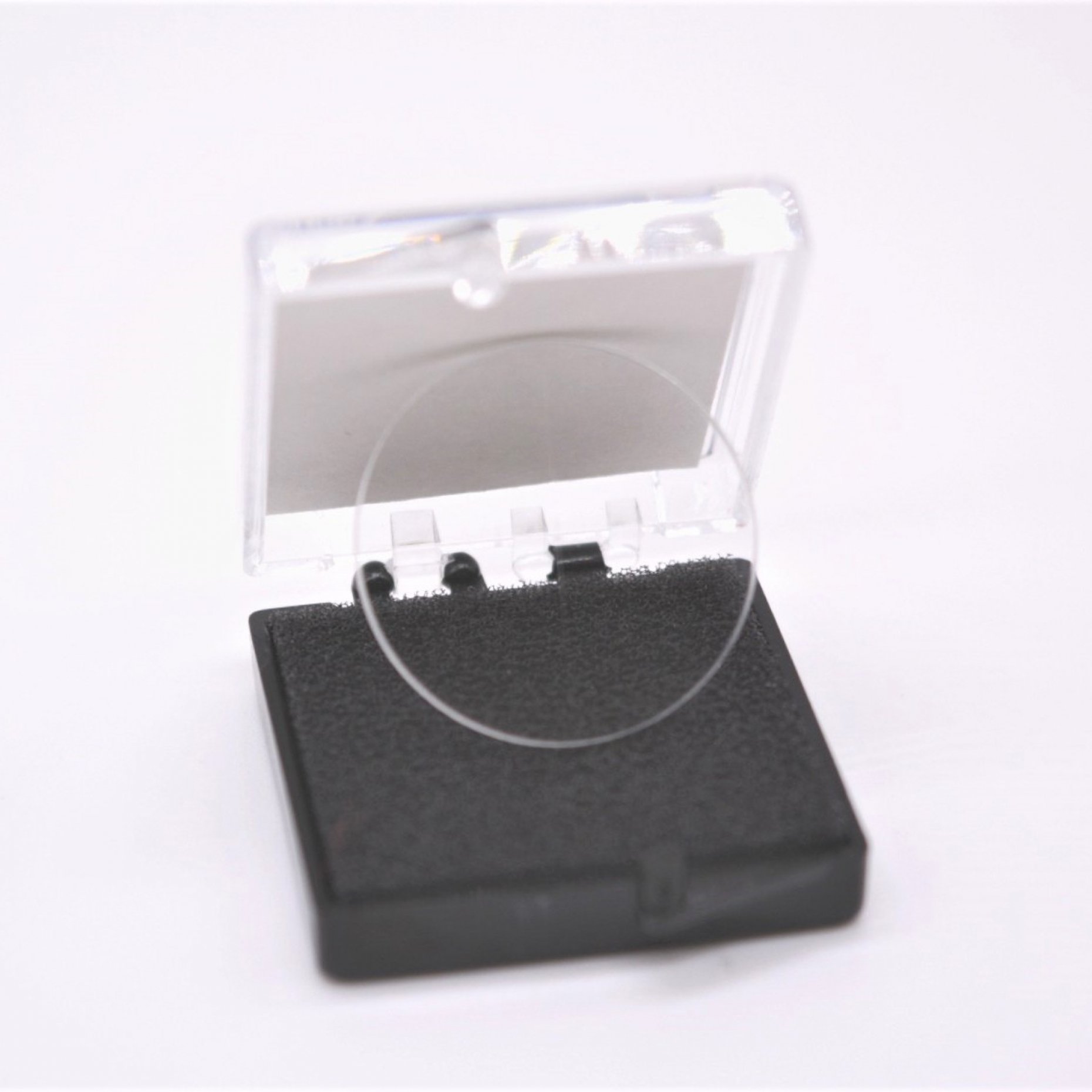

[Graticules Optics] Horizontal Scale 5mm/0.05mm
NE5
Order code
01B16203
Description
Horizontal Scale 5mm/0.05mm
Key features
Eyepiece Reticle with 5mm Horizontal Micrometer Scale subdivided into 100 divisions of 0.05mm (500µm)
Line Thickness
0.0055mm +/-0.0015mm
Glass Type and Thickness
Soda Lime 1.5mm thick
Scale Length Tolerance
+/-0.005mm
Diameter Tolerance
+0/-0.1mm
Divisional Marker Lengths
1mm, 0.79mm, 0.39mm
Orientation
Correct reading through glass
