[ACS Material] SBA-15

[ACS Material]  SBA-15





SKU# MSB15011



Santa Barbara Amorphous-15 (SBA-15) is a highly stable mesoporous silica sieve developed by researchers at the University of California at Santa Barbara. It gets it high hydrothermal and mechanical stability from a framework of uniform hexagonal pores that feature a narrow pore-size distribution and a tunable pore diameter of 5nm to 15nm, but, most significantly, from its relatively thick walls, which range between 3.1nm and 6.4nm. SBA mesoporous silica 15 has a high internal surface area, which lends itself to various applications, including environmental adsorption and separation, advanced optics, and catalysts.

Mesoporous silica SBA-15 is synthesized in acidic conditions using triblock copolymer Pluronic 123 (EO20PO70EO20) as a pattern and tetraethoxysilane (TEOS) for the source of silica. Once synthesis is complete, the organic template is removed by a variety of methods, including calcination; reflux extraction; H2O2 treatments; microwave digestion; and/or washing with pure solvents, ethanol, acetone, or water. ACS Materials’ SBA-15 was calcined in air at 823 Kelvin for 6 hours, resulting in a fine, white powder.

ACS Materials provides the finest nanomaterials to commercial and academic research labs around the world. Our products are on the leading edge of technology and are contributing to advancements in the fields of biology, chemistry, physics, and engineering. Our goal is to provide the highest-quality products at the lowest possible prices and to provide exceptional customer service before and after each purchase. Contact us today to see how we can help your research reach new heights.

CAS No.: 7631-86-9

1. Preparation Method

Hydrothermal Method

2. Characterizations

Key features of our SBA-15 products are:

Appearance:	White Powder
Particle Size (μm)	1~4
Pore Diameter (nm)	6~11
Pore Volume (cm3/g):	1.46
BET surface area (m2/g)	≥550
Phase	p6mm
Comparative Crystallinity (%)	≥90
BJH Desorption Cumulative Volume of Pores (cm3/g)	0.6793
Bulk Density (g/cm3)	0.067
Tap Density (g/cm3)	0.145

This product is calcined and ready to use directly.

Typical SEM Image of ACS Material Mesoporous Silica Molecular Sieve SBA-15 (1)

Typical SEM Image of ACS Material Mesoporous Silica Molecular Sieve SBA-15 (2)

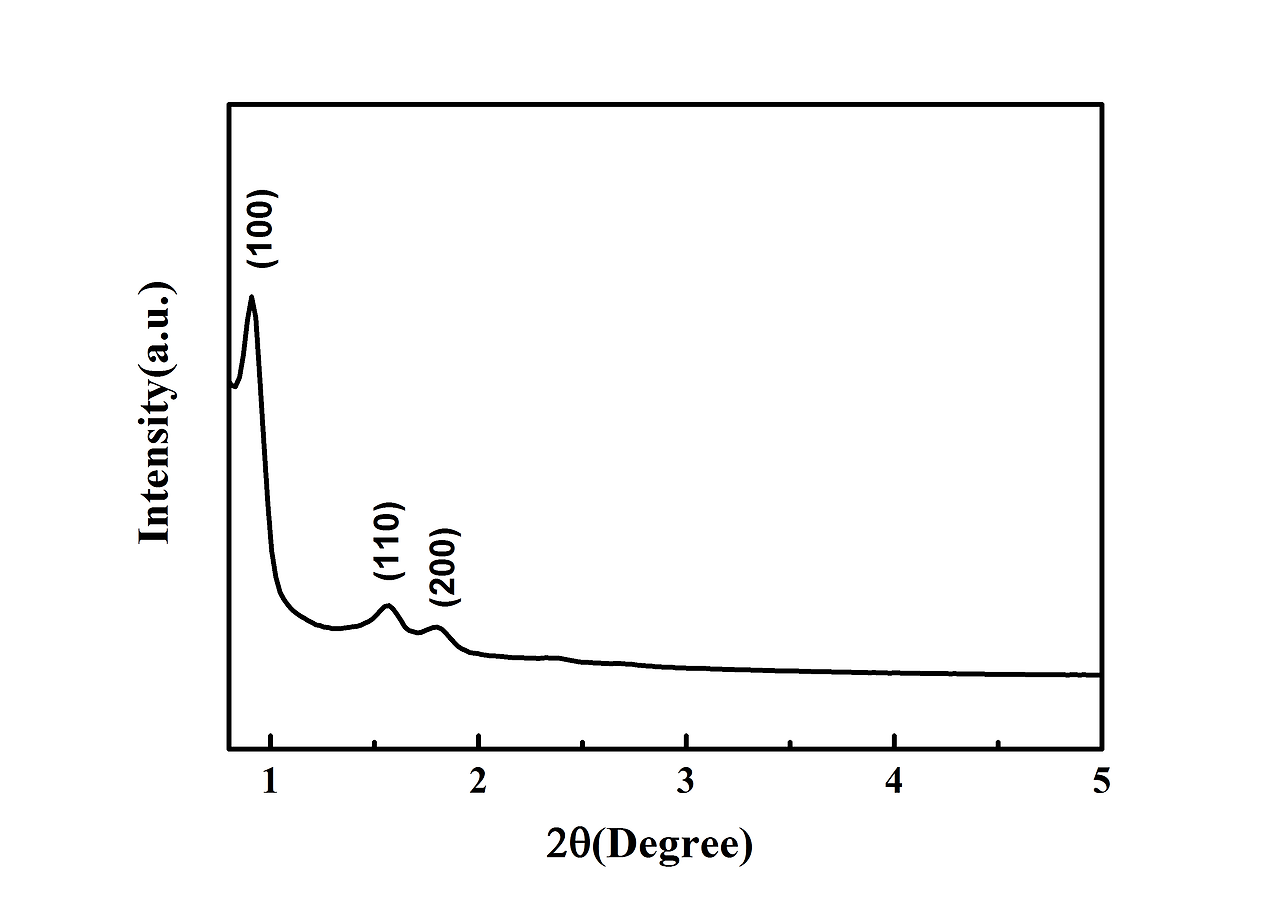

Typical XRD Analysis of ACS Material Mesoporous Silica Molecular Sieve SBA-15

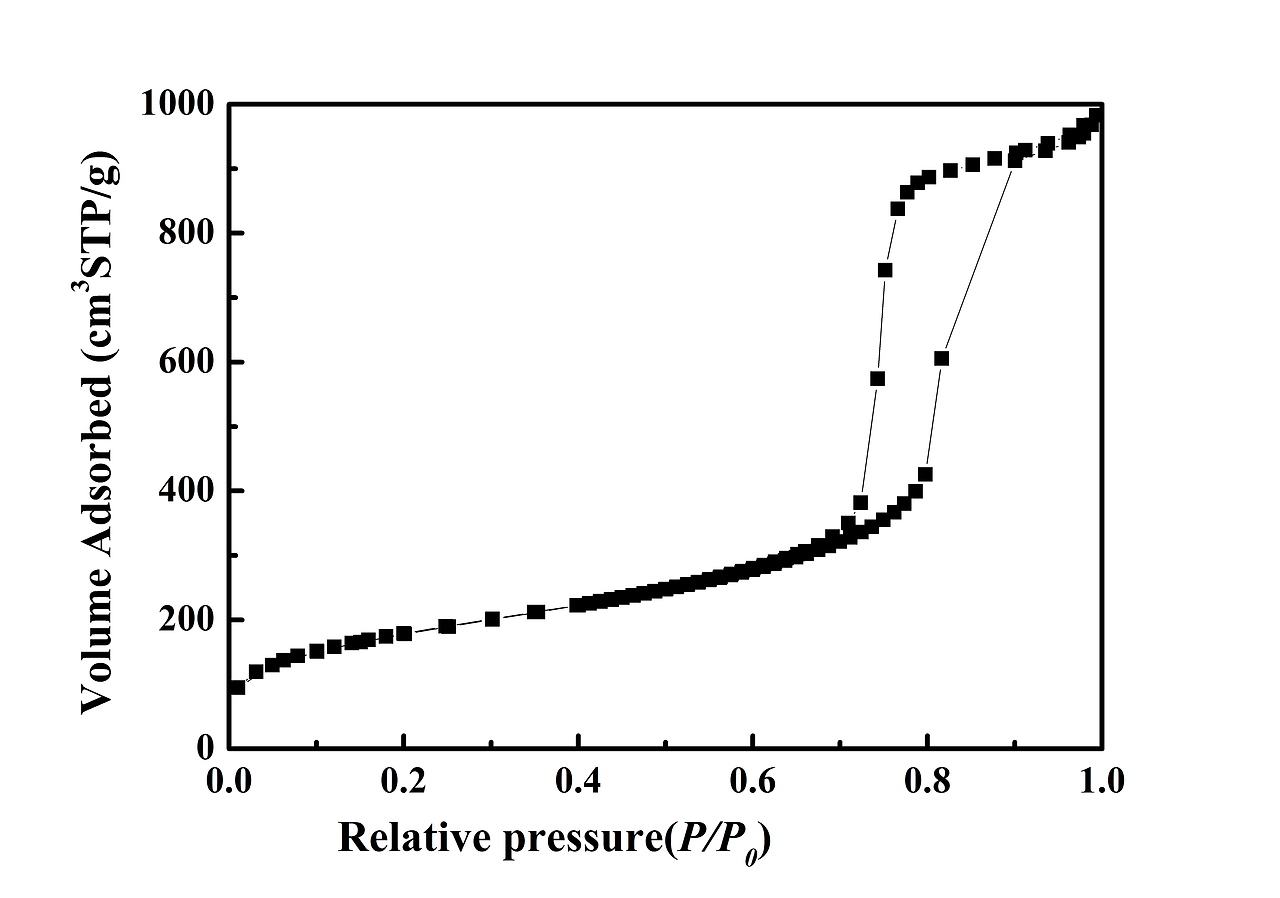

Typical BET Analysis of ACS Material Mesoporous Silica Molecular Sieve SBA-15

3. Application Fields

1)   Catalyst carrier

2)   As a templating agent

3)   Nanomaterials
