[ACS Material] Copper Nanowire (50-200nm), 1g

[ACS Material]  Copper Nanowire (50-200nm), 1g



SKU# NWCUE101



KEY FEATURES OF THE COPPER NANOWIRE:

Product Name：	Copper Nanowire
Appearance:	Red suspension
Diameter:	50-200 nm
Length:	10-30 µm
Concentration:	~10 mg/ml
Solution:	Ethanol/Water*
Purity:	~99%

*ACS can also provide it in water dispersion. Contact us for more information.

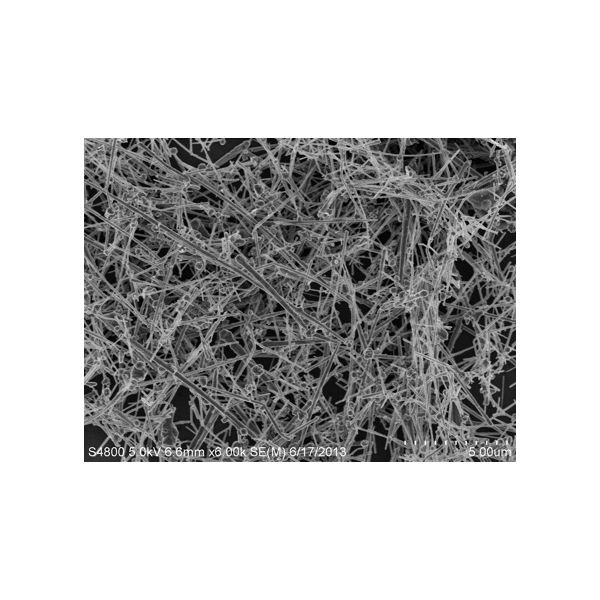

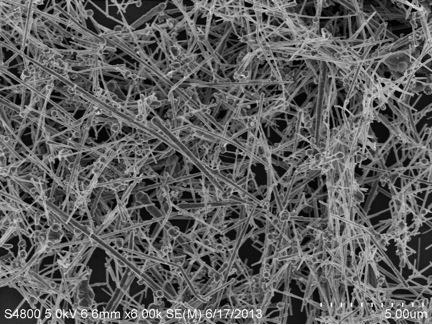

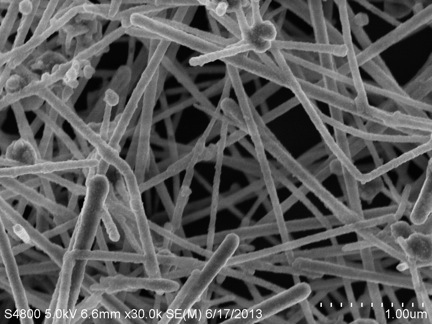

SEM Image of Copper Nanowire -- ACS Material

SEM Image of Copper Nanowire -- ACS Material

APPLICATIONS

Optical Applications: Solar; Medical imaging; Surface enhanced spectroscopy; Optical limiters
Conductive Applications: High-intensity LEDs‚ Touch screens‚ Conductive adhesives‚ Sensors
Anti-microbial Applications: Air & water purification‚ Bandages‚ Films‚ Food preservation‚  Clothing
Chemical & Thermal: Catalysts‚ Pastes‚ Conductive adhesives‚ Polymers; Chemical vapor sensors

STORAGE

Sealed and keep refrigerated at 4oC. Shelf Life is one month under proper storage and recommend using it as soon as possible.

INSTRUCTION

It’s normal that copper nanowire may precipitate in the bottle. Please sonicate it at 300W for a maximum of 3mins before use. If you use 600-800W, please keep the sonication time under 1mins. Gently stirring it may also help.

Note:

OLD SKU#: CuNwEth-1g

NEW SKU#: NWCUE101



CAS No.: 7440-50-8 (copper), 64-17-5 (ethanol); 7789-20-0 (water)

ACS Material is a leading supplier of nanomaterials to laboratories and innovative companies around the world. Our copper nanowire dispersed in ethanol has exceptional shape memory properties, can be used to create low-cost transparent conductors, and is ideal for a number of other applications, including the following:

• Optical: solar, medical imaging, surface enhanced spectroscopy, optical limiters
• Conductive: high-intensity LEDs‚ touchscreens‚ conductive adhesives‚ sensors
• Antimicrobial: air & water purification‚ bandages‚ films‚ food preservation‚ clothing
• Chemical & Thermal: catalysts‚ pastes‚ conductive adhesives‚ polymers, chemical vapor sensors

The diameter of copper nanowire is about 150nm and the length is in the range of 10-30 microns. It’s made to conform to the highest standards of quality and purity. When you buy copper nanowire and other nanomaterials from ACS Material, you can be certain you’re getting the finest product at the best possible price.
