[ACS Material] V-Shape AAO (5P/Pack)

[ACS Material]  V-Shape AAO (5P/Pack)



SKU# A3010021



CAS No.: 1344-28-1

Types of V-Shape AAO Templates

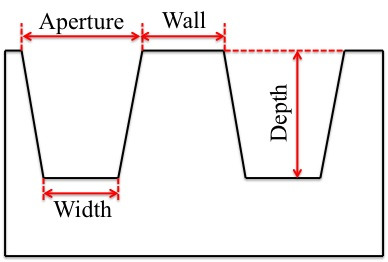

SKU	Opening Aperture	Bottom Aperture	Hole Depth	Size
A3010021	90nm	40nm	200nm	2cm x 2cm
A3030021	300nm	100nm	300nm	2cm x 2cm
A3010011	90nm	40nm	200nm	1cm x 1cm
A3030011	300nm	100nm	300nm	1cm x 1cm

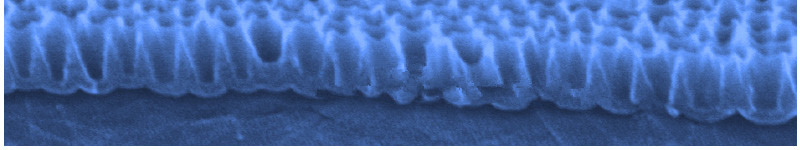

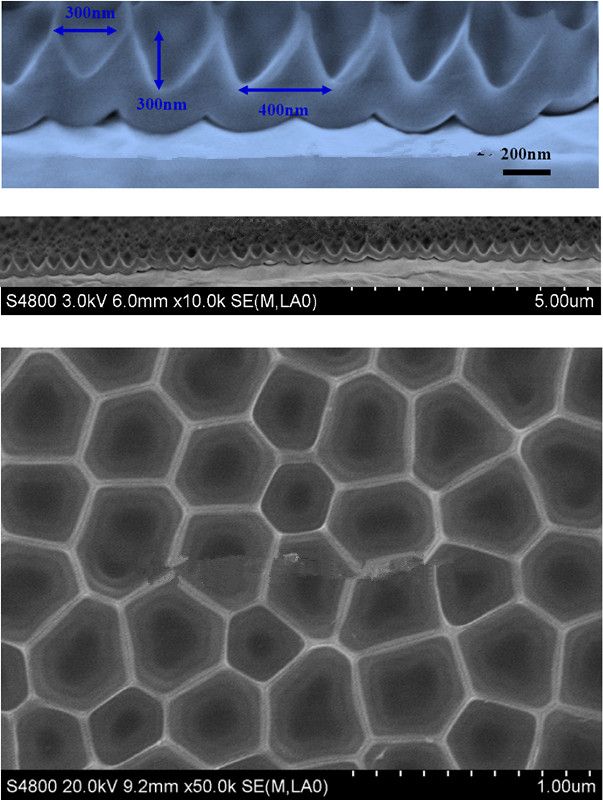

The tapered hole (V) AAO template changes the normal vertical channel AAO template into a structure with large pore size above and small pore size below. The structure is especially suitable for nano surface construction‚ such as nano-imprint lithography. In the release phase of the process‚ V channel has a great advantage over the vertical channel.

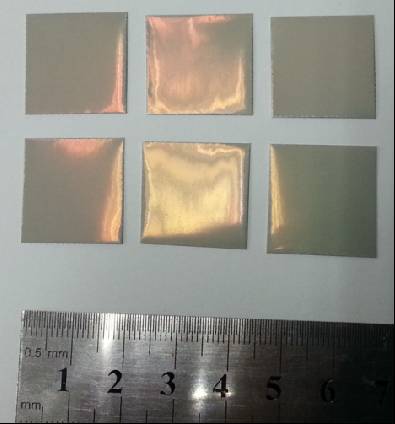

V Shape AAO Templates，2cmx2cm
