[ACS Material] Double-Pass AAO (5p/Pack)

by 래빗랩스(RabbitLabs) 2024. 2. 19.

[ACS Material]  Double-Pass AAO (5p/Pack)



SKU# A2010011

CAS No.: 1344-28-1

Types of Double-Pass AAO Templates

SKU Aperture Hole Depth Hole Cycle
(Interpore distance)
Circular (DIA)
A2010011 50nm 50-70µm 110nm 1.2 cm
A2020011 70nm 50-70µm 110nm 1.2 cm
A2030011 90nm 50-70µm 110nm 1.2 cm
A2041011 200nm 50-70µm 450nm 1.2 cm
A2051011 300nm 50-70µm 450nm 1.2 cm
A2061011 400nm 50-70µm 450nm 1.2 cm
A2010021 50nm 50-70µm 110nm 2.5 cm
A2020021 70nm 50-70µm 110nm 2.5 cm
A2030021 90nm 50-70µm 110nm 2.5 cm
A2041021 200nm 50-70µm 450nm 2.5 cm
A2051021 300nm 50-70µm 450nm 2.5 cm
A2061021 400nm 50-70µm 450nm 2.5 cm

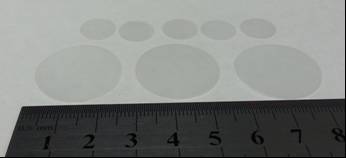

Double-Pass AAO Templates Circular‚ Aperture 50nm or 100nm.

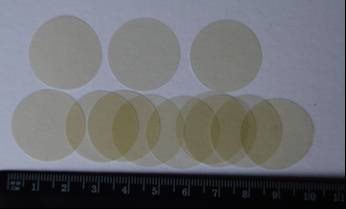

Double-Pass AAO Templates Circular‚ Aperture 200nm or 300nm.

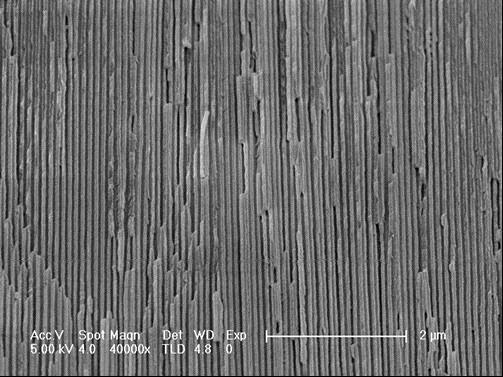

SEM Photo 1 for AAO Templates Cross Section

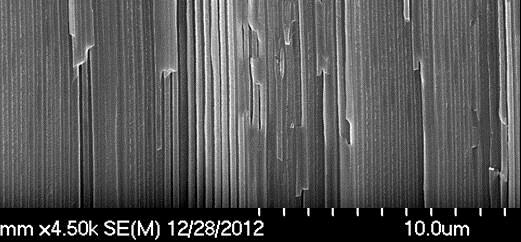

SEM Photo 2 for AAO Templates Cross Section

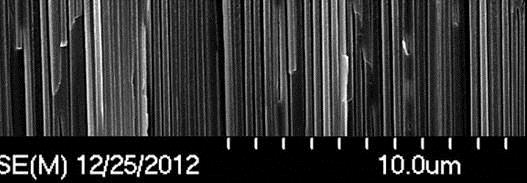

SEM Photo 1 for AAO Templates

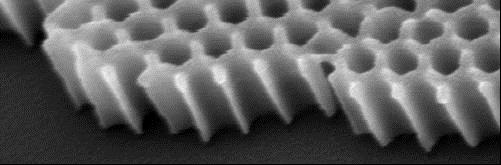

SEM Photo 2 for AAO Templates

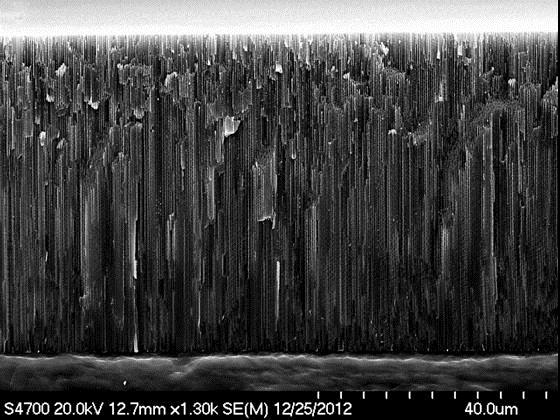

SEM Photo 3 for AAO Templates



Disclaimer: ACS Material LLC believes that the information on our website is accurate and represents the best and most current information available to us. ACS Material makes no representations or warranties either express or implied, regarding the suitability of the material for any purpose or the accuracy of the information listed here. Accordingly, ACS Material will not be responsible for damages resulting from use of or reliance upon this information.

FAQ

1. What is the best method to dissolve/etch an AAO Template?

There are two methods that we recommend. Please make the best adjustments based on your own experiment.

Slow Removal: Depending on the microstructure evolution, a slow removal of AAO layer may be preferred. This can be achieved by using 5 wt% phosphate acid at 30º Celsius. Usually, this process is suitable for Single-Pass AAO.

Rapid removal: Use heated 3M NaOH or HCl solution, depending on your specific needs.

2. What's the thickness of the Al substrate?

The Al substrate is 150microns thick.

3. What is the best method for cutting an AAO Template?

The method we recommend involves using a metal ruler, a sharp knife or blade, a clean cloth (specialized cleanroom wipes suggested), and a hard flat surface (glass or steel).

Cutting Method:

  1. Cover the hard surface with a cleanroom wipe or clean cloth.

  2. Place the AAO sample on the wipe with the Al substrate (back side) facing up.

  3. Align the metal ruler parallel to the cut you want to make.

  4. Press down firmly on the ruler and slice the AAO sample several times along the edge of the ruler.

  5. If the AAO sample is not cut through completely, slowly and carefully bend the template until it comes apart.

  6. Finally, the AAO sample can be cleaned by ultrasonic cleaning <30 seconds using acetone, ethanol, isopropyl alcohol or deionized water.
